Key Guidelines for Designing Flexible PCBs for Manufacturability

Designing a flexible PCB isn’t just about saving space,it’s about making sure your board can bend, twist, and still perform flawlessly.

If you’re working with flex circuit board manufacturers or planning your subsequent flexible PCB fabrication, you already know that designing for flexibility is more than just changing the board shape. Without proper planning, your flexible design might fail in the field,or during PCB board assembly manufacturing. In this blog, we’ll cover easy-to-follow guidelines that help you design flexible PCBs that are both reliable and manufacturable. These tips are based on real-world experience from top flex PCB production experts and will save you time, money, and rework.

What is a Flexible PCB?

A flexible printed circuit or FPC is a thin, bendable circuit board made using flexible plastic materials like polyimide. Unlike rigid PCBs, flexible boards can bend and twist, making them ideal for compact devices, wearables, cameras, and medical tools. Designing them is different from traditional rigid boards. The layout, materials, and even the shape must be carefully planned to avoid cracking or tearing during use.

That’s why working with experienced flex circuit board manufacturers is key,they understand the limits of materials and can guide you through wise design choices.

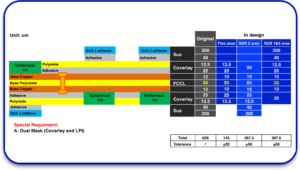

flex-stackup

Why Manufacturability Matters in Flex PCB Design

Even the most creative flex PCB design won’t work if it can’t be built. When your design ignores flex pcb fabrication rules, it can lead to:

  • Delamination or tearing during bending
  • Signal loss or distortion
  • Difficulty during PCB board assembly manufacturing
  • Product failures during use

Focusing on manufacturability early in your design process ensures your board performs well and is easier to build at scale. This also helps reduce waste and production costs during custom PCB manufacturing.

Top Guidelines for Flex PCB Manufacturability

Let’s look at some best practices that can help your FPC flexible printed circuit succeed,both in design and in production.

1. Define the Flexing Area Clearly

Always mark the areas of the PCB that will bend or move. This is your flexing reference zone. Your flex circuit board manufacturer must know which areas need to remain flexible and which will stay rigid.

Tip: Don’t put components or vias in the flexing area. These are likely to fail due to mechanical stress.

2. Use Rounded Traces, Not Sharp Corners

Sharp trace angles can cause stress points during repeated bending. In your flex PCB design, use curved traces or angles no sharper than 45 degrees.

Rounded traces distribute stress more evenly and help prevent cracks in the copper during flex PCB fabrication.

3. Avoid Plated Through-Holes in Bending Areas

Through-holes can weaken a flex PCB where it bends. They may crack after repeated flexing, leading to broken connections.

Place any plated holes, vias, or component pads outside the flexing reference area whenever possible. Use flexible interconnects or stiffeners in sensitive zones.

4. Stagger Traces Between Layers

In multi-layer flexible PCBs, don’t stack traces on top of each other in the bending area. This adds thickness and creates stress concentration when the board bends.

Instead, stagger the traces across different layers. This improves mechanical strength and makes your flex PCB production more reliable.

5. Keep Trace Widths Consistent

Wide variations in trace width can lead to uneven stress distribution. Use consistent widths throughout the FPC flexible printed circuit, especially in areas that will flex.

Also, keep a balanced copper distribution across layers. This helps reduce curling and warping during manufacturing and assembly.

6. Use Proper Bend Radius

One of the most essential factors in flexible PCB fabrication is choosing the right bend radius. A bend that’s too tight can cause the material to crack or delaminate.

Here’s a basic rule:

  • Static flex (1–2 bends): Bend radius ≥ 6x material thickness
  • Dynamic flex (repeated bends): Bend radius ≥ 10–12x material thickness

Talk to your flex circuit board manufacturer to confirm the ideal radius for your material stack-up.

7. Add Stiffeners in Key Areas

Sometimes, you need rigid sections in your FPC flexible printed circuit for component mounting or connector support. This is where stiffeners come in.

Stiffeners are materials added to specific sections to make them more rigid without changing the entire board.

Use stiffeners to:

  • Support connectors
  • Reinforce solder joints
  • Prevent bending near critical components.

Discuss stiffener placement with your custom PCB manufacturing partner early on so they can plan for it in production.

8. Design with Assembly in Mind

During PCB board assembly manufacturing, the flexible material can shift, curl, or move,making alignment and soldering tricky.

Design features that help assembly teams:

  • Add tooling holes for alignment
  • Include fiducials for machine vision.
  • Leave enough space between components.
  • Avoid tiny passive components in bend zones.

These choices will improve assembly quality and reduce handling errors.

9. Minimize Cross-Hatching on Ground Planes

Some older design habits call for cross-hatching ground planes to increase flexibility. While it can make the board easier to bend, it also reduces EMI shielding and increases resistance.

Today, solid copper planes are often preferred for flex PCB fabrication, especially in high-speed or RF applications. Cross-hatching should only be used if required for extreme flexibility,and only after testing.

10. Work Closely with Your Manufacturer

Every flex PCB project is different. Instead of guessing, ask your flex circuit board manufacturers for help.

At Blind Buried Circuits, our engineering team supports customers through every step of flexible PCB fabrication,from stack-up design to final testing.

We’ll review your Gerber files, recommend improvements, and catch issues before they become expensive problems. This kind of collaboration is what makes custom PCB manufacturing successful.

Bonus Tip: Build a Prototype First

Before placing a complete production order, build a prototype of your FPC flexible printed circuit. This lets you:

  • Test the fit of your product
  • Check bending behavior
  • Verify signal performance
  • Make adjustments without wasting material.

Prototyping also gives your flex PCB fabrication partner time to refine processes before mass production.

Key Takeaways for Reliable Flex PCB Design

Designing flexible PCBs is a wise choice for modern electronics,but it takes planning and care. Use the right materials, follow proper layout rules, and stay in close contact with your custom PCB manufacturing team.

To recap:

  • Always define your flexing reference areas
  • Avoid traces and components in bending zones.
  • Use proper bend radius and consistent trace widths.
  • Add stiffeners where needed for strength.
  • Work with experienced flex circuit board manufacturers from the start

When you follow these guidelines, your flexible PCB won’t just fit,it’ll last.

Why Choose Blind Buried Circuits for Flex PCB Production?

We’re not just another PCB board assembly manufacturing company. At Blind Buried Circuits, we specialize in high-quality flex PCB fabrication, including:

  • Quick-turn flex and rigid-flex PCBs
  • Prototyping and volume production
  • Medical, aerospace, and consumer-grade materials
  • ISO-certified quality and fast lead times

Whether you need a simple single-layer FPC or a multi-layer design with tight tolerances, we’re ready to help.

Need Help With Your Flex Design?

Get expert feedback before you send your files for production. Contact Blind Buried Circuits today for a free design review and quote.

Let’s make your flexible PCB design work,first time, every time.
